Dahan Kule Vinç
Dahan kule vinc santiye gorunumu

DH800 (8075)

40t / 80m / Flat Top

40 ton80 m kol84.5 m yukseklikUc Yuk: 5.8 Ton (4-Fall) / 7.5 Ton (2-Fall)

Dahan DH800 (8075) — 40 ton kapasiteli ağır sınıf gergisiz (flat-top) kule vinç. 80m bom uzunluğu, □3.0m mast ile 84.5m serbest yükseklik. Yüksek katlı konut, AVM ve mega altyapı projeleri için.

Katalogu Incele

Temel Ozellikler

Kapasite
40 ton
Kol Uzunlugu
80 m
Yukseklik
84.5 m
Uc Yuk
5.8 Ton (4-Fall) / 7.5 Ton (2-Fall)
Motor
380V (±10%) / 50Hz

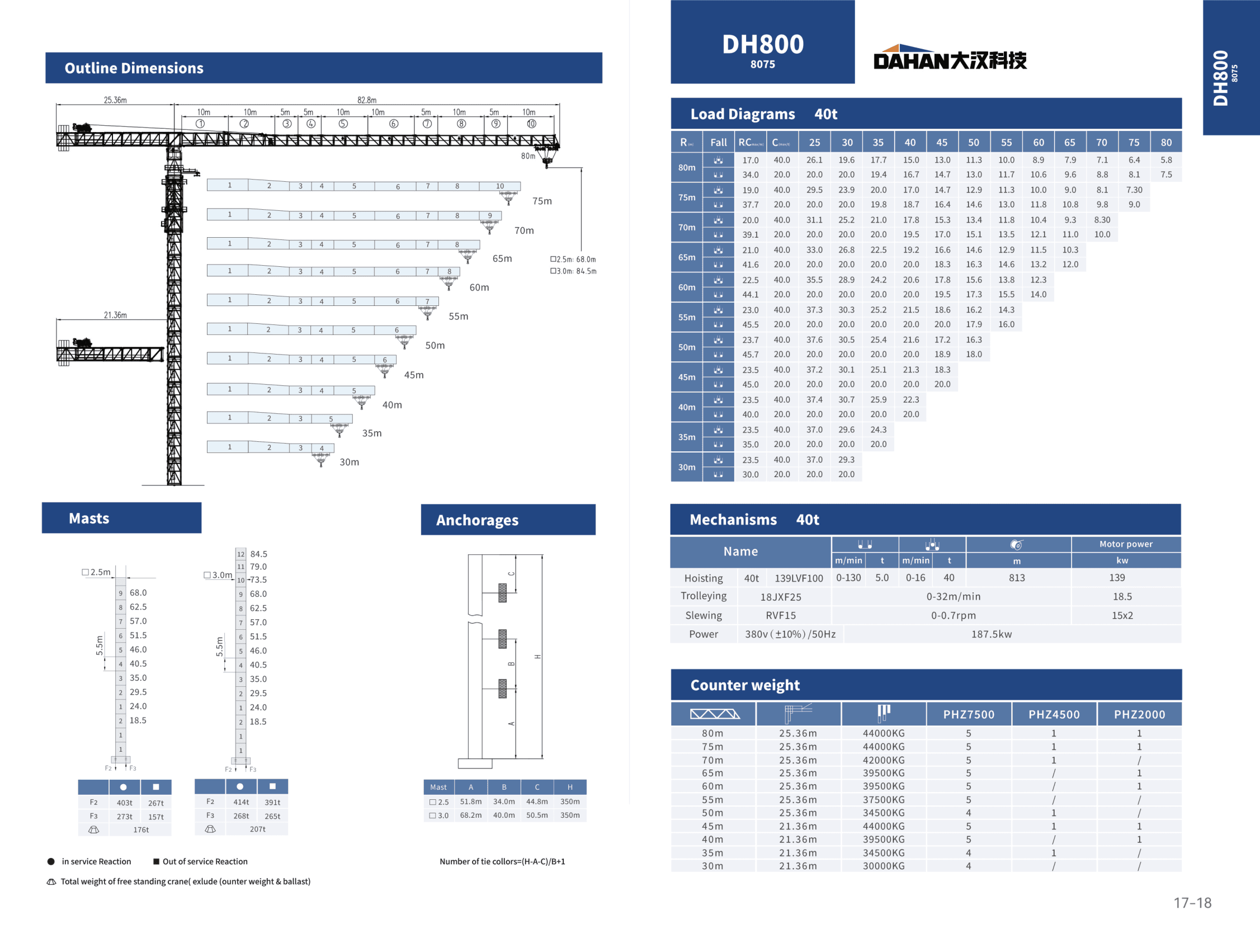

Katalog Sayfasi

DH800 (8075) katalog sayfa 1
1 / 1

Kurulum Yukseklikleri

□2.5mKonfigurasyonu

Statik (Ankarajli)

Bom Alti68m
Kanca Alti68m
□3.0mKonfigurasyonu

Statik (Ankarajli)

Bom Alti84.5m
Kanca Alti84.5m

Detayli Yuk Diyagrami

Resmi Katalog Verisi

Asagidaki degerler standart kurulum icindir. Ruzgar yuku, zemin etudu ve bina yapisina gore konfigurasyon muhendislerimiz tarafindan projeye ozel belirlenir.

BomFallR(Cmax)Cmax253035404550556065707580
80m23420202019.416.714.71311.710.69.68.88.17.5
4174026.119.617.7151311.3108.97.97.16.45.8
75m237.720202019.818.716.414.61311.810.89.89
4194029.523.9201714.712.911.31098.17.3
70m2392020202019.51715.113.512.11110
4204031.125.22117.815.313.411.810.49.38.3
65m241.62020202018.516.314.613.21210.9
421403326.822.519.216.614.612.911.510.3
60m244.12020202018.316.314.713.312.1
422.54035.528.924.220.617.815.713.812.3
55m245.5202020202017.91614.3
4234037.330.325.221.518.616.214.3
50m245.7202020202017.916
423.74037.630.525.421.617.216.3
45m244.5202020202017.5
423.54037.230.125.121.318.3
40m2402020202020
423.54037302522.3
35m23520202020
423.5403729.624.3
2-Fall (Hizli)
4-Fall (Agir yuk)
6-Fall
8-Fall (Ekstrem)

Bom Konfigurasyonu

Counter Jib25.36m
Max Jib80mtoplam uzunluk: 82.8m
Segments10

Kule Vinc Silueti

25.36m80m

Segment Konfigurasyonlari

25.36m
10m
1
10m
2
5m
3
10m
4
5m
5
10m
6
5m
7
10m
8
5m
9
10m
10
82.8m
1
2
3
4
5
6
7
8
9
10
80m
1
2
3
4
5
6
7
8
9
75m
1
2
3
4
5
6
7
8
70m
1
2
3
4
5
6
7
9
65m
1
2
3
4
5
6
7
8
60m
1
2
3
4
5
6
55m
1
2
3
4
5
7
50m
1
2
3
4
6
45m
1
2
3
4
40m
1
2
4
5
35m
Kule Yukseklikleri (□2.5m / □3.0m (5.5m sections)):
Lv1:18.5m
Lv2:24m
Lv3:29.5m
Lv4:35m
Lv5:40.5m
Lv6:46m
...+7
Kullanilan Segment
Kullanilmayan Segment

Mekanizma Ozellikleri (40t)

IsimModelHiz 1Yuk 1Hiz 2Yuk 2Motor
Hoisting139LVF1000-1305t0-1640t139
Trolleying18JXF250-32m/min---18.5
SlewingRVF150-0.7rpm---15×2
Guc: 380v (±10%)/50Hz
Toplam: 187.5KW

Karsi Agirlik

YukseklikDosemeAgirlikBagBlok Dagilimi
80m25.3644000KG5PHZ7500×5, PHZ4500×1, PHZ2000×1
75m25.3644000KG5PHZ7500×5, PHZ4500×1, PHZ2000×1
70m25.3642000KG5PHZ7500×5, PHZ4500×1
65m25.3639500KG5PHZ7500×5, PHZ2000×1
60m25.3639500KG5PHZ7500×5, PHZ2000×1
55m25.3637500KG5PHZ7500×5
50m25.3634500KG4PHZ7500×4, PHZ4500×1
45m21.3644000KG5PHZ7500×5, PHZ2000×1
40m21.3639500KG5PHZ7500×5
35m21.3634500KG4PHZ7500×4
30m21.3630000KG4PHZ7500×4

Kule Bolumleri (□2.5m / □3.0m (5.5m sections))

13
||
84.5m
12
||
79m
11
||
73.5m
10
||
68m
9
||
62.5m
8
||
57m
7
||
51.5m
6
||
46m
5
||
40.5m
4
||
35m
3
||
29.5m
2
||
24m
1
||
18.5m

Max: 84.5m

Lv118.5m
Lv224m
Lv329.5m
Lv435m
Lv540.5m
Lv646m
Lv751.5m
Lv857m
Lv962.5m
Lv1068m
Lv1173.5m
Lv1279m
Lv1384.5m

Temel Agirliklari (ton)

□2.5 F2: 403t / 267t
□2.5 F3: 273t / 157t
□3.0 F2: 414t / 391t
□3.0 F3: 268t / 265t

Ankraj Bilgileri

ABCH
MastABCH (Max)
□2.551.8m34m44.8m350m
□3.068.2m40m50.5m350m

A: Tie collar yatay mesafesi · B: Tie collar araligi · C: Ust uzanti · H: Max ankaraj yuksekligi
